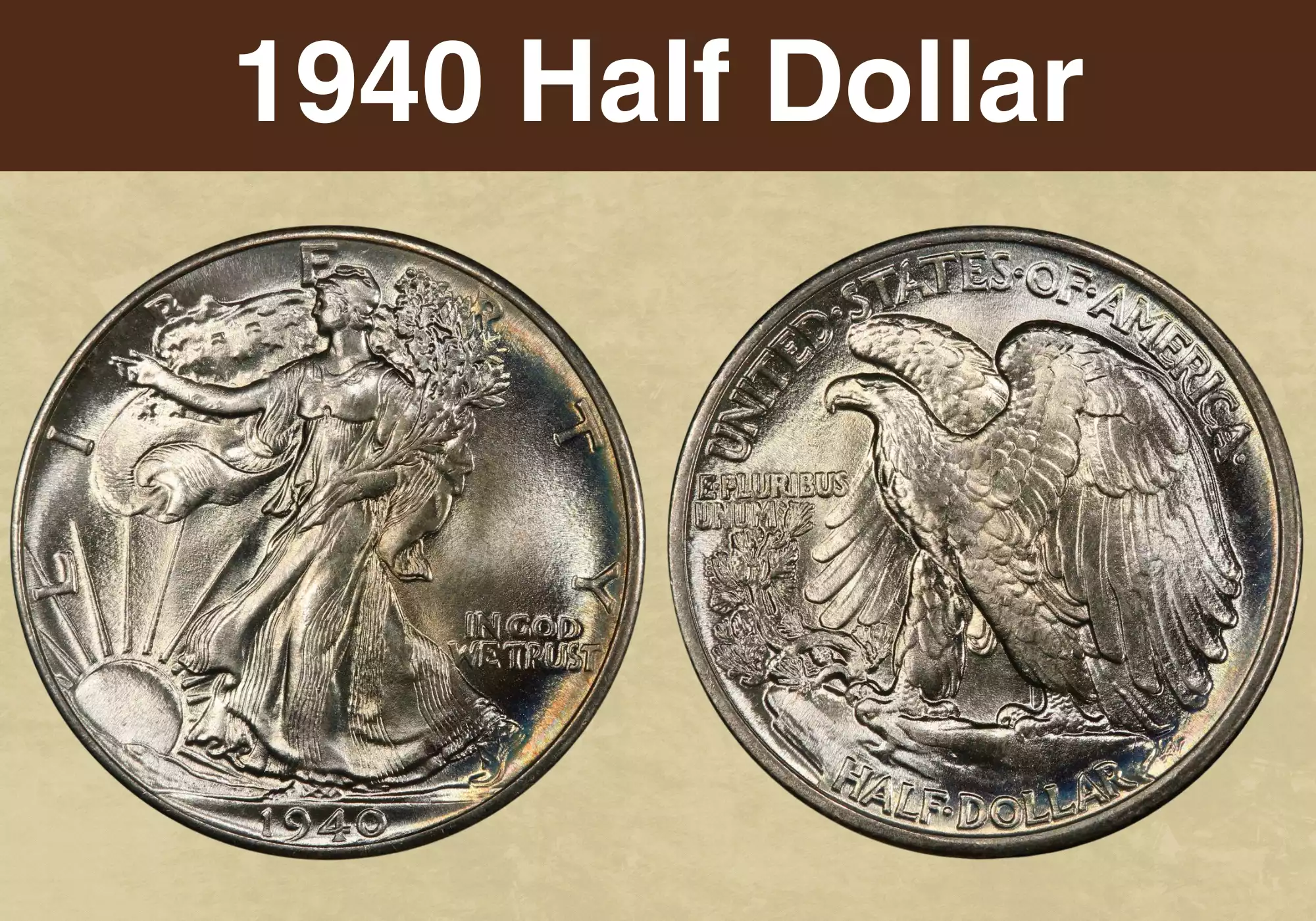

The Valuable 1940 Half Dollar Errors — Complete Guide
The 1940 Walking Liberty half dollar series produced four important error and variety types that numismatists actively seek. The complex high-relief design created by Adolph Weinman presented significant striking challenges, leading to the varieties described below. Each card shows what to look for, where to look, and what the market currently pays. Use a 10× loupe for best results.

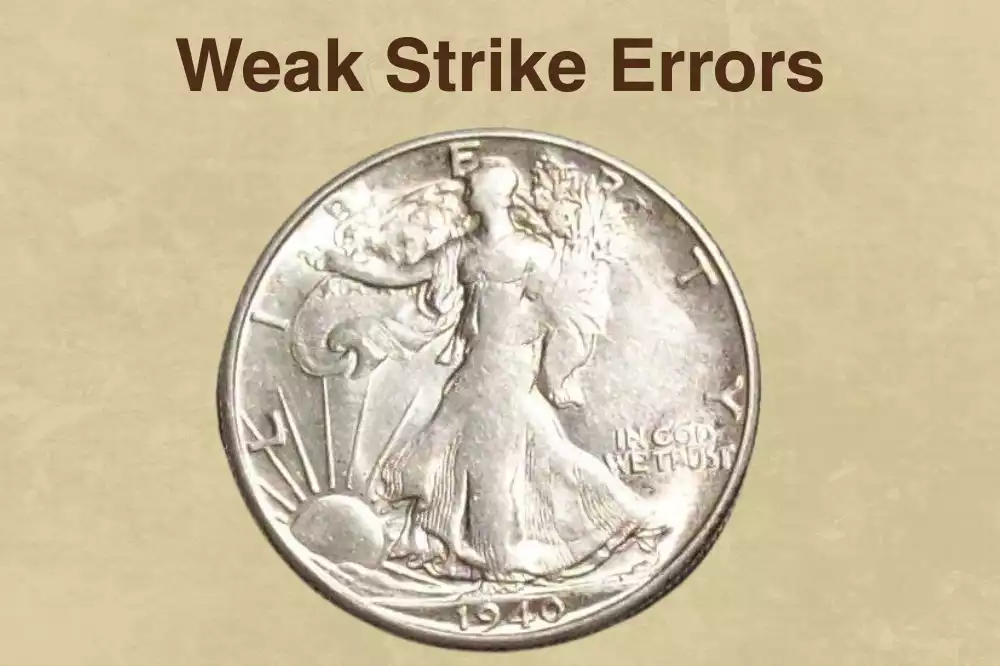

1940-S Weak Strike ("Flat as a Pancake")
PCGS CoinFacts designates the 1940-S as "the worst struck of all Walking Liberty Half Dollars." The weakness originates from insufficient striking pressure and die wear at the San Francisco Mint, concentrated in the center of the obverse die where Liberty's left hand meets her gown.
Visually, the diagnostic is Liberty's left hand: on a typical specimen, individual fingers are blurry, merged, or entirely absent — as if they were never struck into the planchet. Sandal straps and lower gown lines on the obverse and central eagle breast feathers on the reverse also exhibit softness.

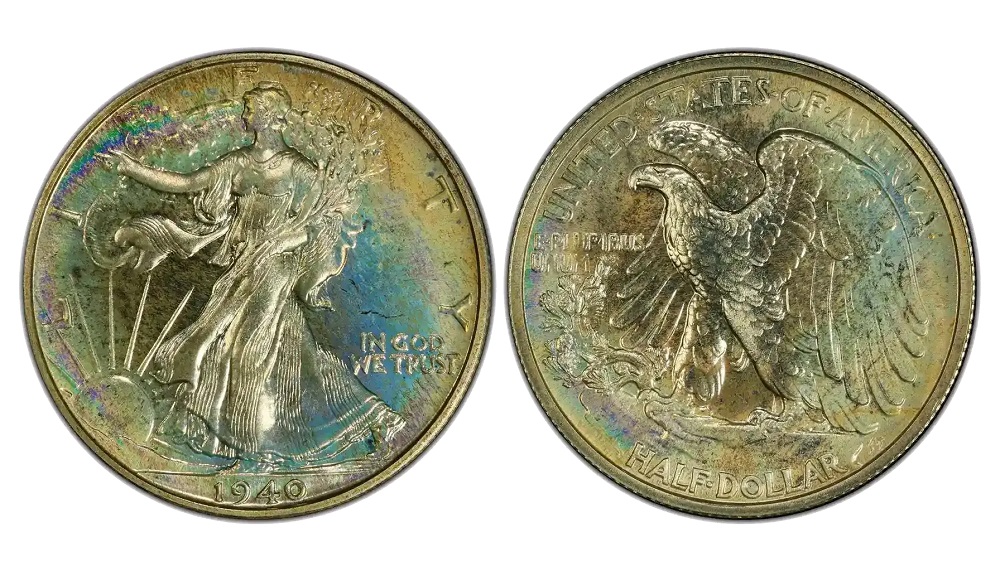

Paradoxically, this endemic weakness has made the 1940-S the rarest Walking Liberty of the entire 1940s decade in uncirculated and gem condition. Well-struck examples with defined individual fingers command dramatic premiums, and the top auction record of $35,250 (PCGS MS67, Heritage Auctions 2013) reflects just how extraordinary a properly struck specimen truly is.
1940 Doubled Die Obverse (DDO)

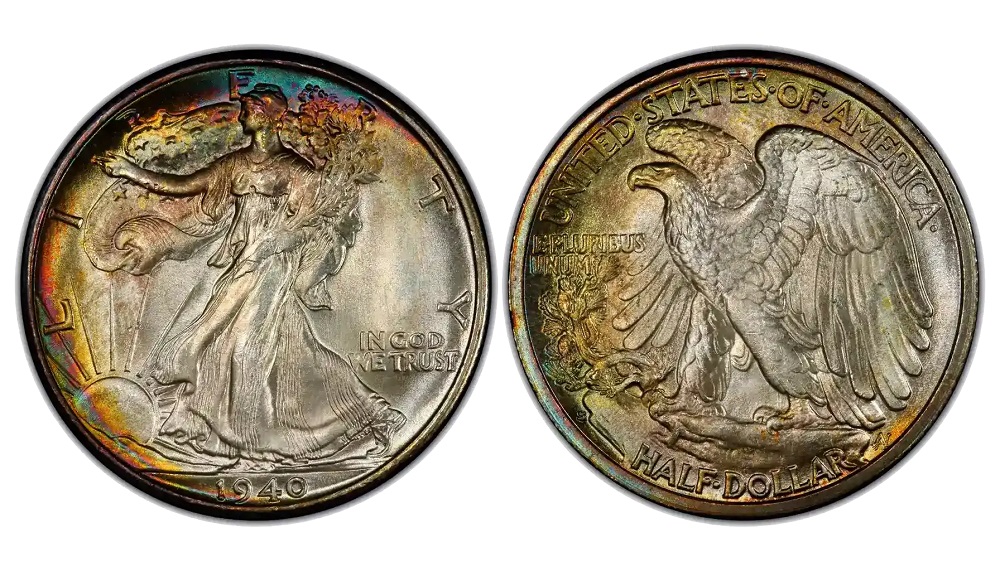

Doubled die obverse errors occur when the working die receives multiple hub impressions that are slightly misaligned during the die-fabrication process. On the 1940 Philadelphia and San Francisco issues, doubling may appear in Liberty's figure, the word LIBERTY at the top of the coin, or in the date digits themselves.
Diagnostically, look for a distinct secondary impression — a clear shelf or shadow — alongside the primary raised design elements. True DDO doubling shows mechanical precision: the secondary image is raised metal, not a smear or die scratch, and maintains consistent offset direction around the design.
Known 1940 DDO varieties add a meaningful premium above standard market value. Minor doubling on lettering typically adds $400–$600 to a coin's value, while strong, visually dramatic doubling on a well-preserved example can push realized prices to $2,000 or more at specialized auction. Always authenticate with a reputable third-party grading service before attributing.
1940-S Repunched Mint Mark (RPM)

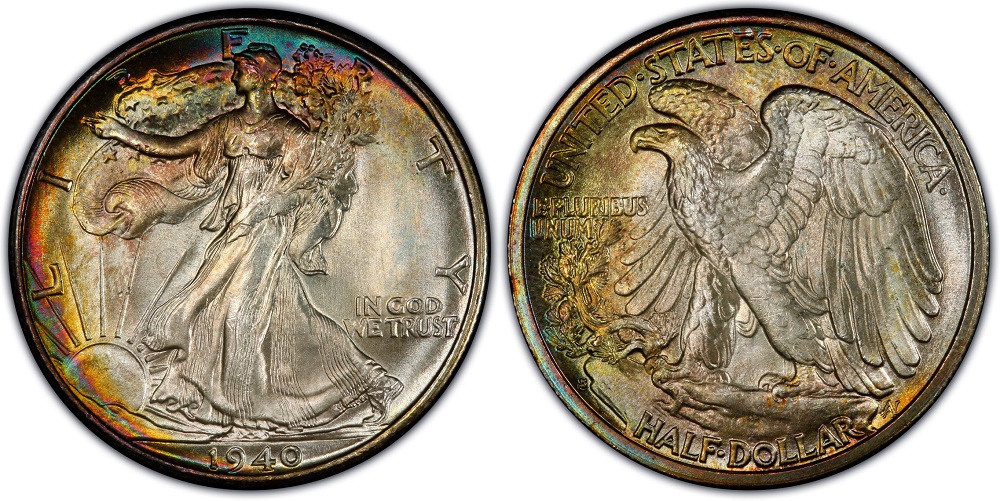

Repunched mint mark errors arise when the mintmark punch strikes the working die more than once at slightly different positions or angles. On the 1940-S half dollar, the "S" mintmark on the reverse can show overlapping impressions that create a doubled or shadow-S effect visible under magnification.
Under a 10× loupe, a true RPM displays two or more complete or partial S-punch outlines that overlap, creating a distinctive stacked or offset appearance. The secondary impression may be above, below, to the left, or tilted relative to the primary S. Authentication is critical because die polish can sometimes mimic a faint RPM.
The RPM category adds a specialized collecting dimension to the 1940-S, which is already sought for its weak-strike status. Premium above standard value depends on the strength and clarity of the repunching: a boldly doubled S in circulated condition typically sells for $75–$200, while sharply repunched examples in uncirculated grades can realize $500–$600 or more among specialist collectors.
1940 Struck-Through & Lamination Errors
Struck-through errors occur when foreign material — a wire fragment, cloth fiber, die grease, or debris — is trapped between the die and the planchet during striking. The debris prevents the die from fully impressing the design in that area, leaving a raised blob or smooth incuse recess on the finished coin's surface.

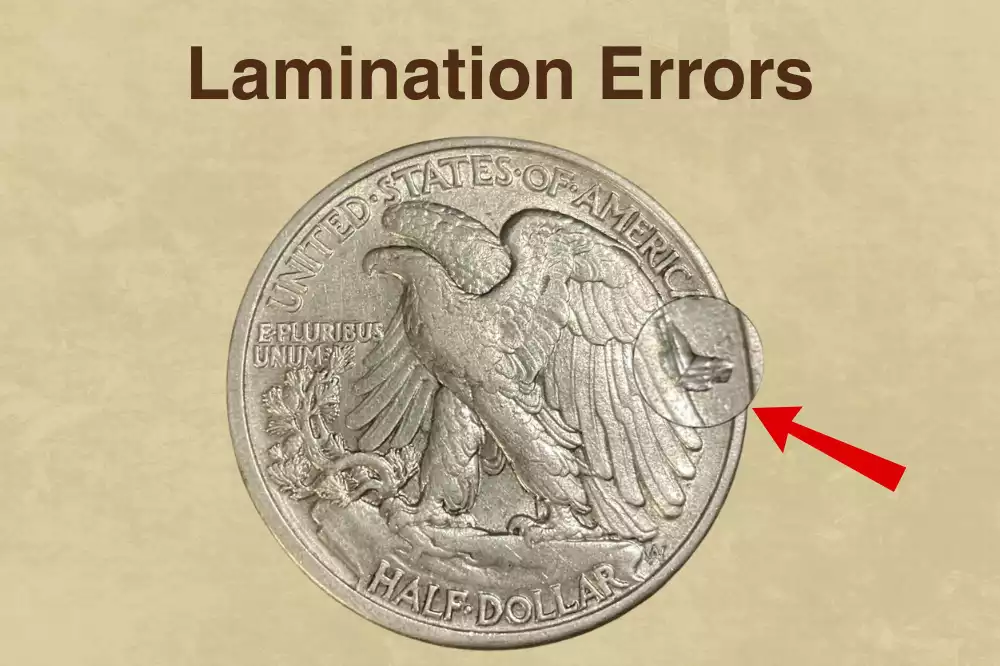

Lamination errors are a separate category caused by impurities or delamination within the silver-copper planchet itself. As the planchet's layers separate under striking pressure or through environmental exposure, surface areas peel, flake, or show a characteristic thin-skin lifting away from the coin body. Both error types are documented on 1940 Walking Liberty half dollars.
Value varies widely by the drama and location of the error. A small struck-through grease blob on a flat field adds modest premium, while a large, clearly defined struck-through covering a design element — or a dramatic lamination peel across Liberty's face — commands serious collector interest. Major, visually striking examples have reached several hundred dollars even in circulated grades.
